Waterjet metal cutting 2000mm x 1500mm waterjet cutting machine

Details

Waterjet metal cutting 2000mm x 1500mm waterjet cutting machine

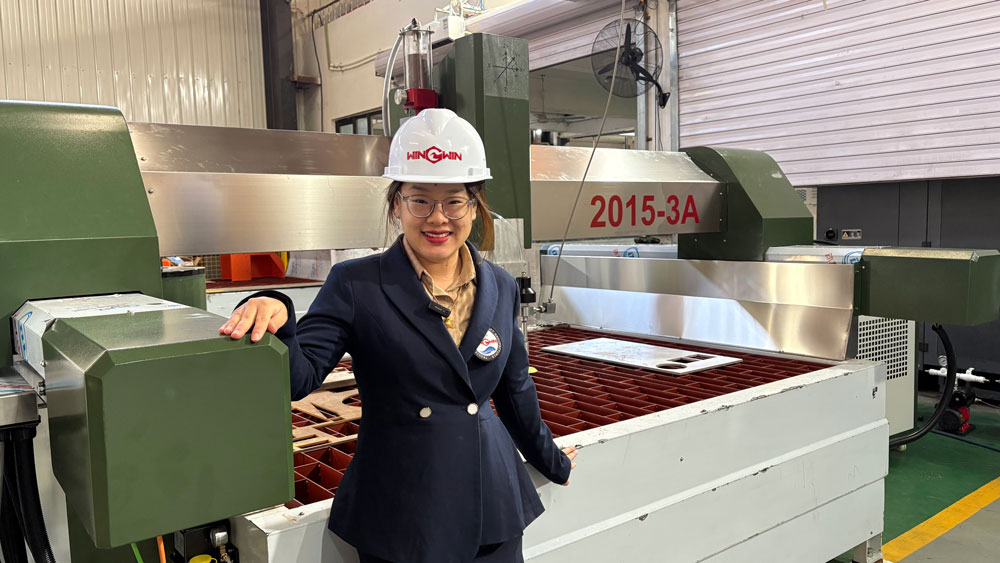

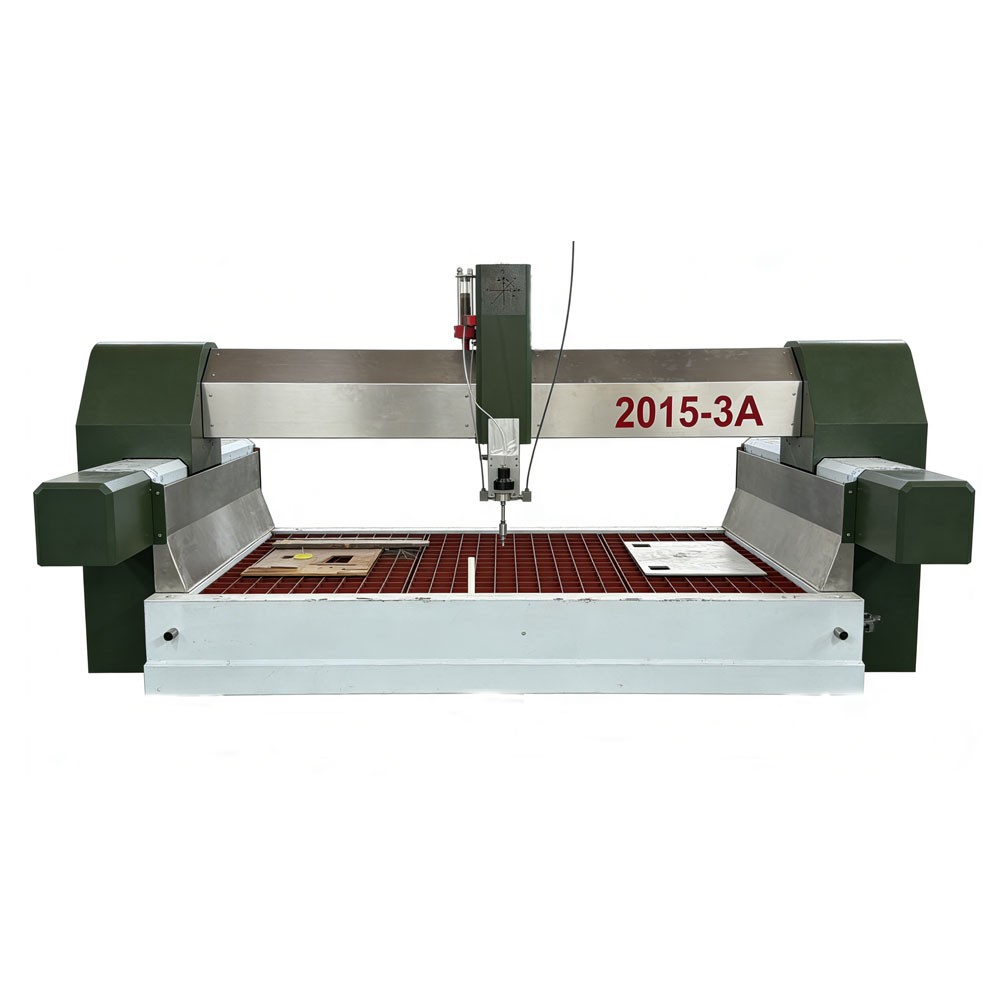

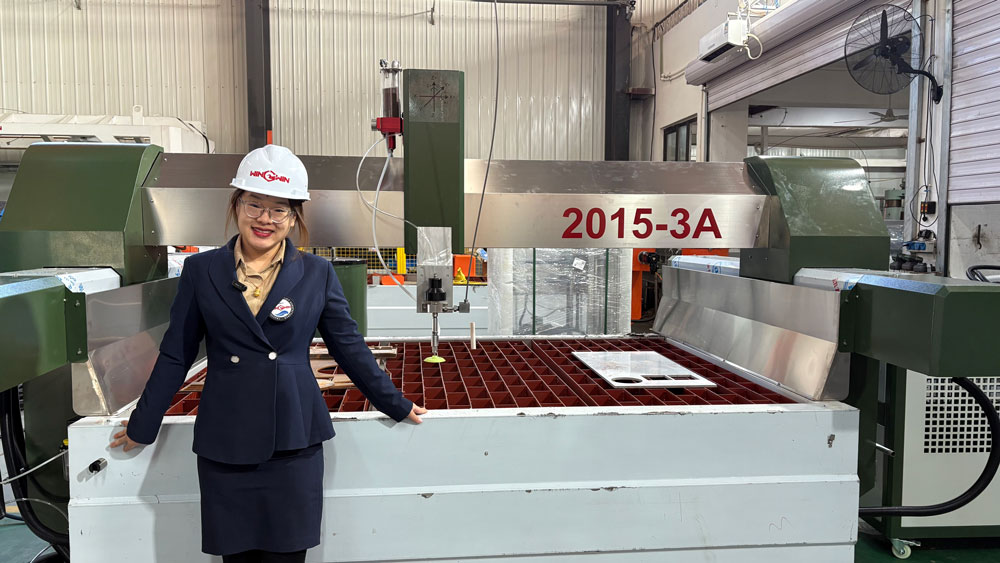

1. Cutting Table	2015 3A waterjet machine
2. CNC Controlling Software	WEIHONG
3. Intensifier Pump	JET50
4. Cooling System	Industrial Grand
5. Water Softener	Five-stage filtration system
6. Abrasive Feeder	200L


Cutting Range	X-Axis : 2000mm ，Y-Axis : 1500mm Z-Axis : 200mm
Control Accurcy	±0.01mm
Re-position accuracy	0.025
Max cutting speed	10m/min
Oprating software	WEIHONG CNC System
Max swing angle	Vertical cutting
Swing angle accuracy	±0.01°

Features of waterjet cutting machine

A. Gantry Type

1.The gantry structure, both ends of the cutting arm are supported, and it is not easy to tilt, even if it is used for a long time, it is not easy to cause cutting errors, and the cutting is more stable.

2.Integrated stainless steel protective structure cutting table, no corrosion, no rust, 10 years bright as new. In- stead of dust folding cloth, waterproof, dust effect is better, and maintenance-free.

3.Moreover, with this structure, multiple cutting heads can be added to realize simultaneous cutting and use of multiple cutting heads.

B.3 Axis Cutting Head

Light weight aluminum 3 aixs waterjet cutting head, light weight, high hardness, ligh- ten running load, rela- tively fast walking speed, higher cutting efficiency.

C. Fully Oil-Immersed Linear Guide

Our waterjet cutting table adopts thick linear guides and large screw balls. The X, Y axis adopts the self-made oil- immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.

D. Integrated Stainless Steel Bath

The table is made of fully stainless steel, anti-rust, anti-corrosion, bright as new for 10 years.

F. ODM: Various colors and styles can be customized.


Max Operating Pressure	420Mpa（60000psi）
Operating Pressure	330Mpa（7200-55000psi）
Power	37KW（50hp）
Max Water Flow	3.8L/min
Max Nozzle Diameter	0.33mm
Pressure Ratio	0.055555556
Max Reversal Rate	95 times/min
Max Oil Pressure	31Mpa
Max Oil Flow	119L/min
Oil Tank Volume	130L
Weight	1.2t
Dimension	1600mm1300mm1100mm

JET50 Intensifier Pump ————— Features

A. Beautiful Appearance and Reasonable Design

The appearance is more exquisite and beautiful, small and exquisite, the main parts of the intensifier and accumula- tor are aggregation and installed above the center of the pump, with a transparent acrylic cover, which is convenient for observing the working status at any time.

B. High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can pur- chase the corresponding parts in any waterjet machine market.

C. Newly designed accumulator

Newly designed accumulator, integral forging, no rubber seals, maintenance-free.

D. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked, and prolong the service life of the Intensifier Pump.


How often should a waterjet cutting machine be maintained?

Waterjet cutting machines are widely used in manufacturing for cutting metal, stone, glass, and composites with high precision. To keep performance stable, reduce downtime, and extend service life, regular maintenance is essential. So how often should a waterjet cutting machine be maintained?

Weekly Maintenance (30–45 minutes)

Clean or replace water and oil filters. Inspect the nozzle, orifice, and mixing tube for wear or clogging. Lubricate guide rails and ball screws. Verify stable abrasive flow to ensure cutting quality.

Monthly Maintenance (1–2 hours)

Inspect high-pressure components, seals, and pipelines. Check electrical connections and control panels. Test safety devices such as emergency stops. Flush the water system to remove mineral deposits.

Annual Maintenance

Arrange a full inspection by a professional technician. Overhaul the high-pressure pump, replace worn parts, and calibrate the cutting system. Clean the cooling system and update maintenance records for better management.

Why Maintenance Matters

Neglecting maintenance leads to poor cutting accuracy, frequent breakdowns, higher repair costs, and safety hazards. Regular care lowers operating costs and keeps production efficient.

In short, follow daily, weekly, monthly, and annual routines. Proper maintenance protects your investment and ensures consistent, reliable performance for your waterjet cutting machine.

What metals can a waterjet cutting machine cut?

1. Steel & Stainless Steel

Water jets easily cut carbon steel, tool steel, and stainless steel grades such as 304 and 316. They handle thin sheets and thick blocks without warping. This makes them ideal for automotive parts, kitchen equipment, and structural components.

2. Aluminum

Aluminum is lightweight, soft, and widely used in aerospace and construction. Water jet cutting delivers smooth edges, avoids burrs, and maintains material integrity.

3. Copper & Brass

These conductive, corrosion-resistant metals are often used in electronics and plumbing. Water jets cut them cleanly without damaging their physical or electrical properties.

4. Titanium

Titanium is strong, heat-resistant, and widely used in aerospace and medical devices. Water jet cutting works perfectly without altering its strength or structure.

5. Bronze

Used in marine and industrial parts, bronze cuts smoothly with an abrasive water jet.

6. Nickel Alloys & High-Temperature Alloys

Alloys like Inconel, Monel, and Hastelloy are extremely tough and heat-resistant. Traditional cutting struggles with them, but water jets cut efficiently with no heat damage.

7. Precious Metals

Gold, silver, and platinum can also be cut accurately for jewelry and precision parts.

Why waterjet Cutting machine works for all these metals?

No heat distortion
No material change
Cuts thin and thick materials
High precision and smooth edges
Environmentally friendly
To sum up, waterjet cutting machines can cut nearly all types of metals, including steel, stainless steel, aluminum, copper, brass, titanium, bronze, and high-performance alloys. It is a safe, efficient, and cost-effective choice for modern metal fabrication.

If you need clean, precise, and distortion-free metal parts, waterjet cutting machine is the ideal solution.
