Waterjet Nozzles which models? which sizes? How to use?

What Is a Waterjet Nozzle?

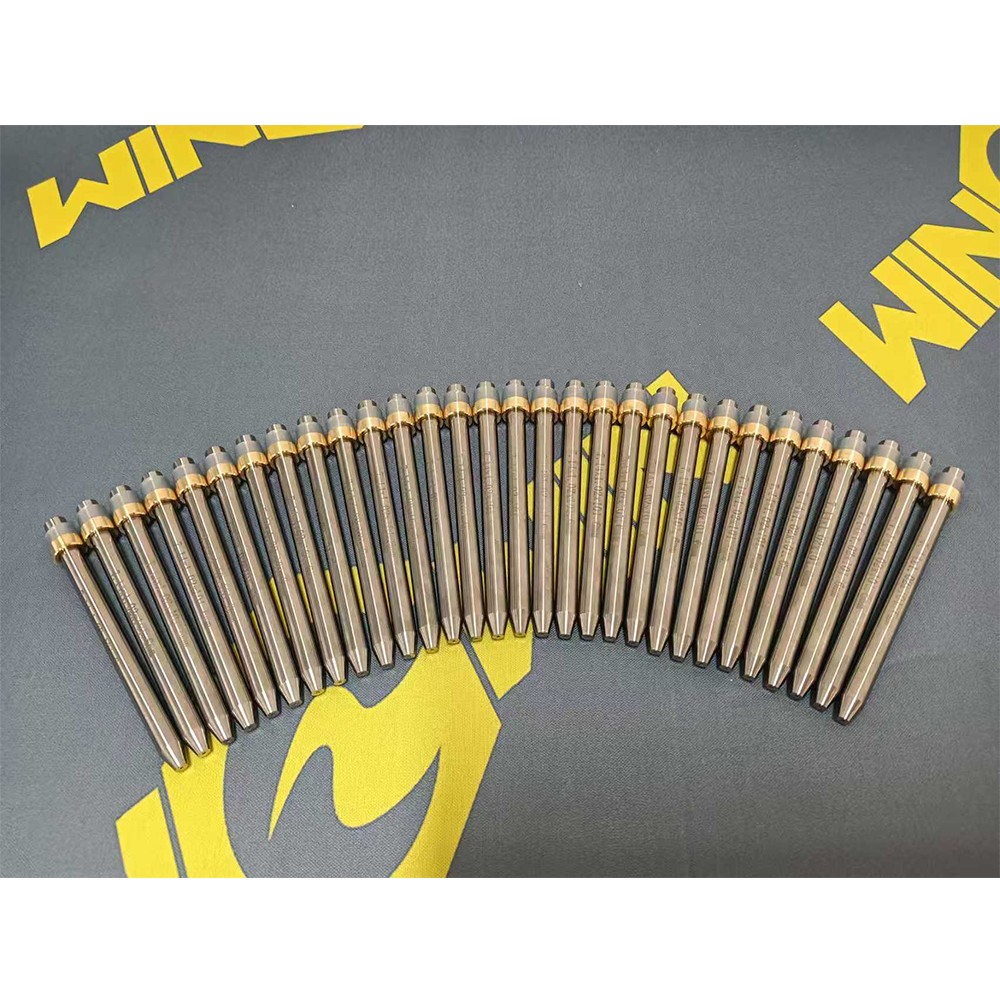

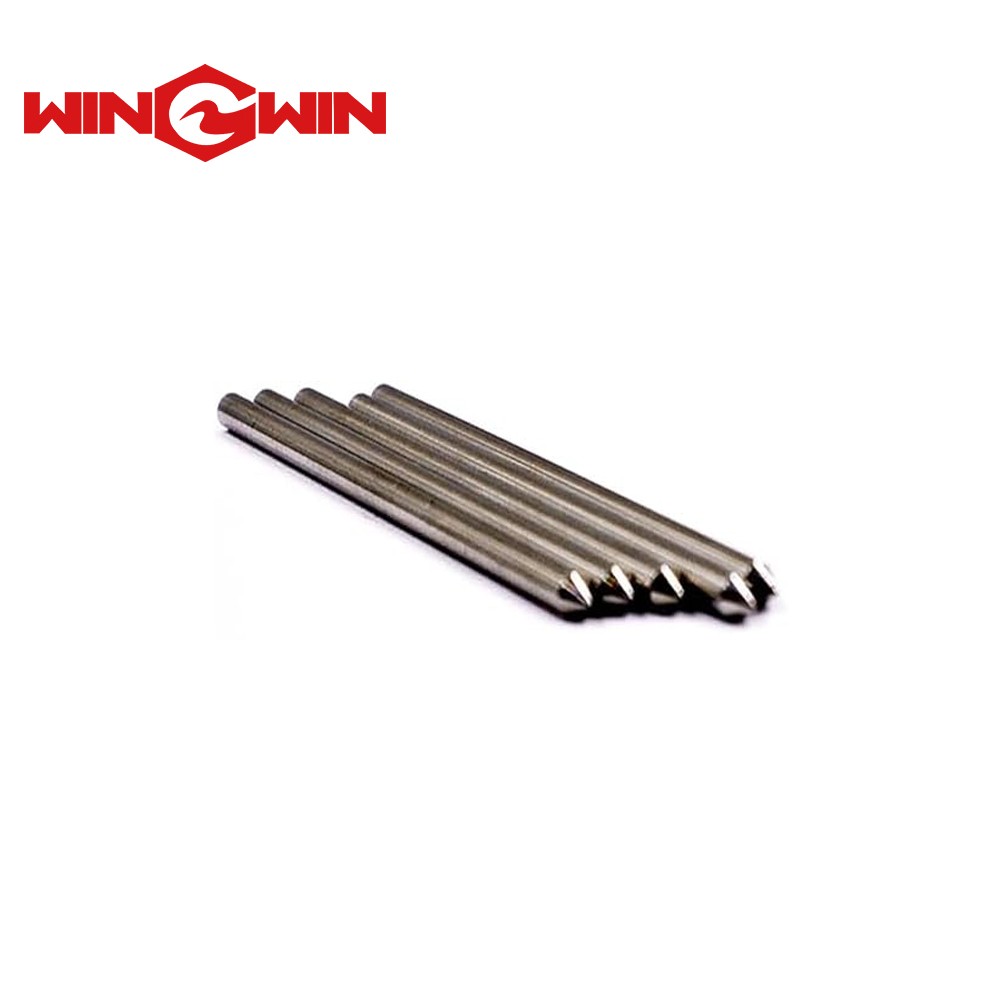

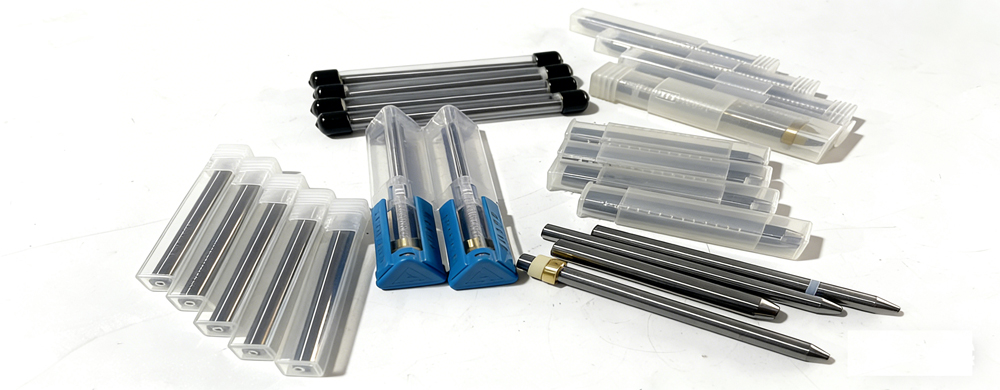

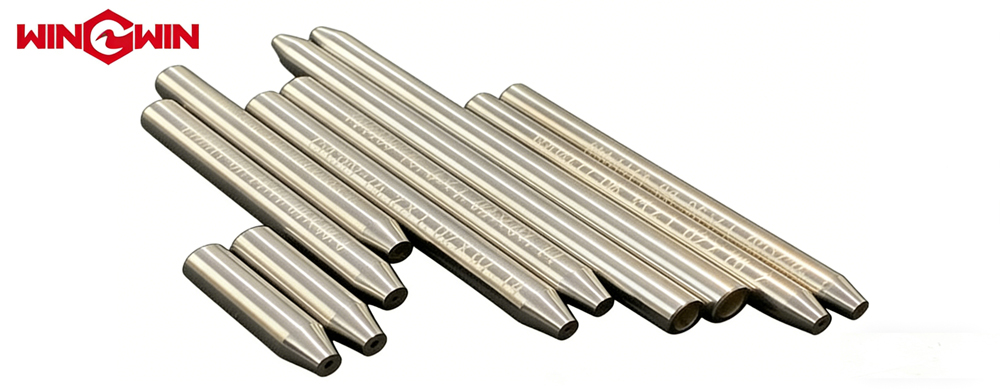

A waterjet nozzle (also known as mixing tube, abrasive nozzle, sand tube) is the core executive component in abrasive waterjet cutting systems, responsible for mixing high-pressure water and abrasives to form a high-velocity cutting jet.

In intensifier pump-driven waterjet systems, the waterjet nozzle directly determines cutting efficiency, edge quality, and part precision. Without a high-performance waterjet nozzle, even the most powerful high-pressure pump cannot deliver stable, consistent cutting results. Every waterjet nozzle converts pressure energy into kinetic energy, making it irreplaceable in abrasive waterjet cutting.

The waterjet nozzle is the final and most critical part for cutting quality. A worn or low-quality waterjet nozzle causes taper, rough edges, and reduced cutting speed, directly increasing production costs.

Standard Waterjet Nozzle Models & Part Numbers (Table)

Common Waterjet Nozzle Dimension & Performance Parameters (Table)

How a Waterjet Nozzle Works

The waterjet nozzle operates on the Venturi principle:

1. High-pressure water passes through the jewel orifice to form a high-speed jet

2. The jet creates negative pressure to draw abrasives into the waterjet nozzle

3. Inside the waterjet nozzle, water and abrasives mix and accelerate

4. The mixed jet exits the waterjet nozzle to cut materials with precision

Key structural parameters of a waterjet nozzle include inner diameter, outer diameter, length, and internal finish. These dimensions define the performance of every waterjet nozzle and must match the cutting head design.

The Problem with Low-Quality Waterjet Nozzle

Many buyers focus only on price when selecting a waterjet nozzle, ignoring material and craftsmanship. Low-grade waterjet nozzle often causes:

• Rapid inner bore wear and inconsistent cutting width

• Jet deflection, leading to part scrap and rework

• Short service life, increasing replacement frequency

• Poor compatibility with cutting heads, causing leakage or vibration

For industrial users, a low-cost waterjet nozzle ultimately raises total operational costs and reduces productivity.

High-Performance Waterjet Nozzle Advantages

Our premium waterjet nozzle adopts one-piece sintered tungsten carbide with optimized grain structure, delivering exceptional wear resistance and service life.

Key Advantages

• Extended service life: 30–50% longer than standard waterjet nozzle

• Stable cutting width: consistent kerf throughout the life of the waterjet nozzle

• Smooth inner bore: reduces turbulence and improves abrasive mixing

• High compatibility: direct replacement for original waterjet nozzle

• Minimal maintenance: no internal seals, simple installation and replacement

How to Use a Waterjet Nozzle

1. Power off the system and release pressure before replacing the waterjet nozzle

2. Clean the mixing chamber and seating surface

3. Insert the waterjet nozzle vertically and tighten evenly

4. Test run without abrasives to check for jet alignment

5. Start with low pressure and gradually increase to operating level

Technical Support

We provide detailed 2D dimension drawings (PDF/DWG) for every waterjet nozzle, including ID, OD, length, chamfer, and seating tolerance. Custom waterjet nozzle drawings are available for special applications.

Ideal Applications for Waterjet Nozzle

The waterjet nozzle is essential for:

• Metal sheet cutting (stainless steel, carbon steel, aluminum)

• Aerospace composite processing

• Stone, glass, and ceramic fabrication

• Automotive precision parts manufacturing

• High-volume production lines requiring stable cutting

Any scenario requiring high precision and low downtime relies on a reliable waterjet nozzle.

Why Choose Win-Win Waterjet Nozzle

In the waterjet industry, waterjet nozzle failure leads to costly downtime. Fast replacement and consistent quality are critical. Win-Win Waterjet provides a full-service solution for waterjet nozzle supply.

Full Brand Compatibility

Our waterjet nozzle lineup supports all leading systems:
Flow International, KMT Waterjet, BFT GmbH, H2O Jet, Dardi, Resato, Techni.

All waterjet nozzle products meet international standards and perform reliably under 60,000–90,000 psi pressure.

Export-Standard Packaging

Each waterjet nozzle is protected with:

• Individual foam packaging

• Reinforced cardboard or plywood cases

• Shockproof and moisture-proof layers

• Clear labeling with part number and specification

Ready Stock & Fast Delivery

We maintain full stock of standard waterjet nozzle models:

• Immediate order processing

• Same-day shipment for in-stock items

• Global express delivery to minimize downtime

Whether you need a single replacement waterjet nozzle or bulk orders for production, Win-Win Waterjet delivers consistent quality, fast support, and cost-effective solutions for your waterjet nozzle needs.
