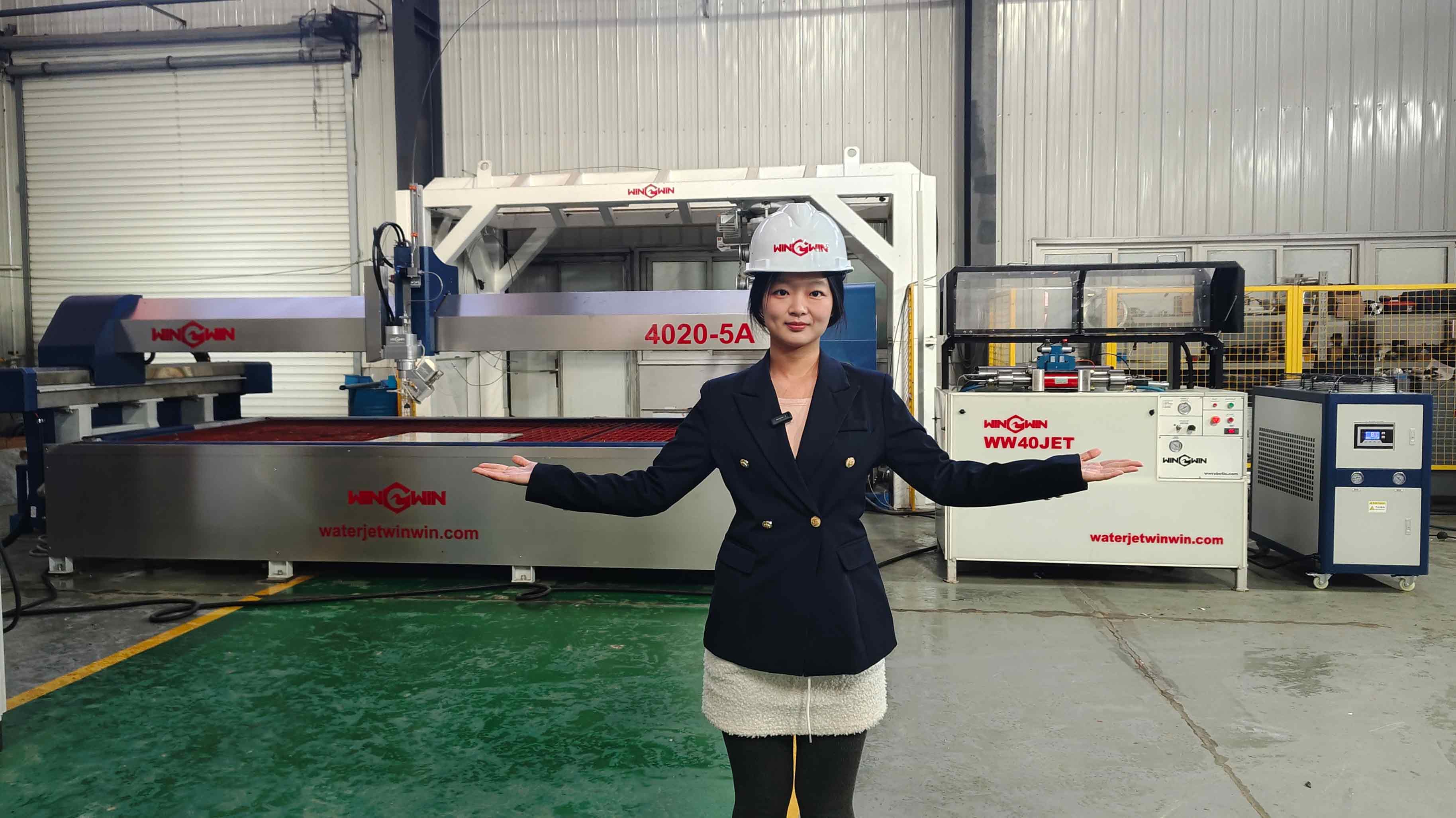

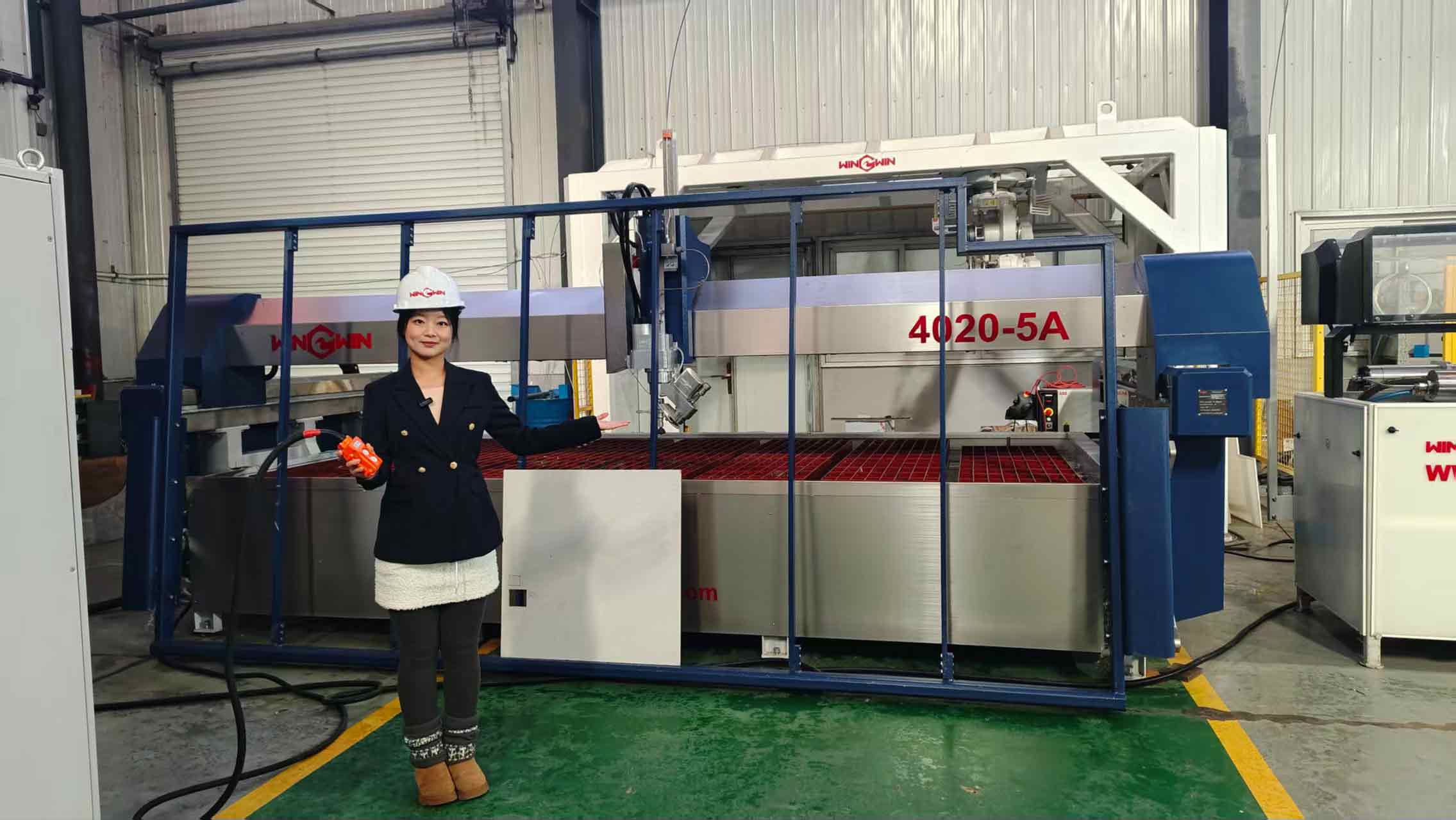

4020 5-Axis Waterjet Cutter for Marble Cutting

In the field of marble and other stone processing, traditional cutting technologies often face pain points such as insufficient precision, low efficiency, high labor costs, and large material loss. The WINWIN 4020 5-axis waterjet cutting machine, equipped with the high-performance WW40JET intensifier pump and integrated with core technologies including laser height measurement, automatic loading/unloading, and Weihong multi-language system, has become an ideal choice for marble cutting, providing a strong support for stone processing enterprises to reduce costs, increase efficiency, and upgrade product quality.

I. Core Advantages: An Intelligent Cutting System Built Exclusively for Marble Processing

1. 5-Axis Linkage Technology for Precision Cutting of Complex Shapes

Traditional 3-axis waterjets can only perform vertical cutting. When processing marble with special shapes, chamfers, bevels and other process requirements, secondary processing is required, which not only reduces efficiency but also easily causes splicing errors. The 4020-5A 5-axis waterjet cutting machine is equipped with a 5-axis linkage cutting head, achieving high-precision cutting of ±0.01mm with a maximum swing angle of ±45°. It can complete the processing of complex marble shapes, 3D reliefs, bevel edges, grooves and more in a single clamping, eliminating the need for secondary grinding, perfectly preserving the natural texture of the stone, and greatly improving the precision and aesthetics of finished products.

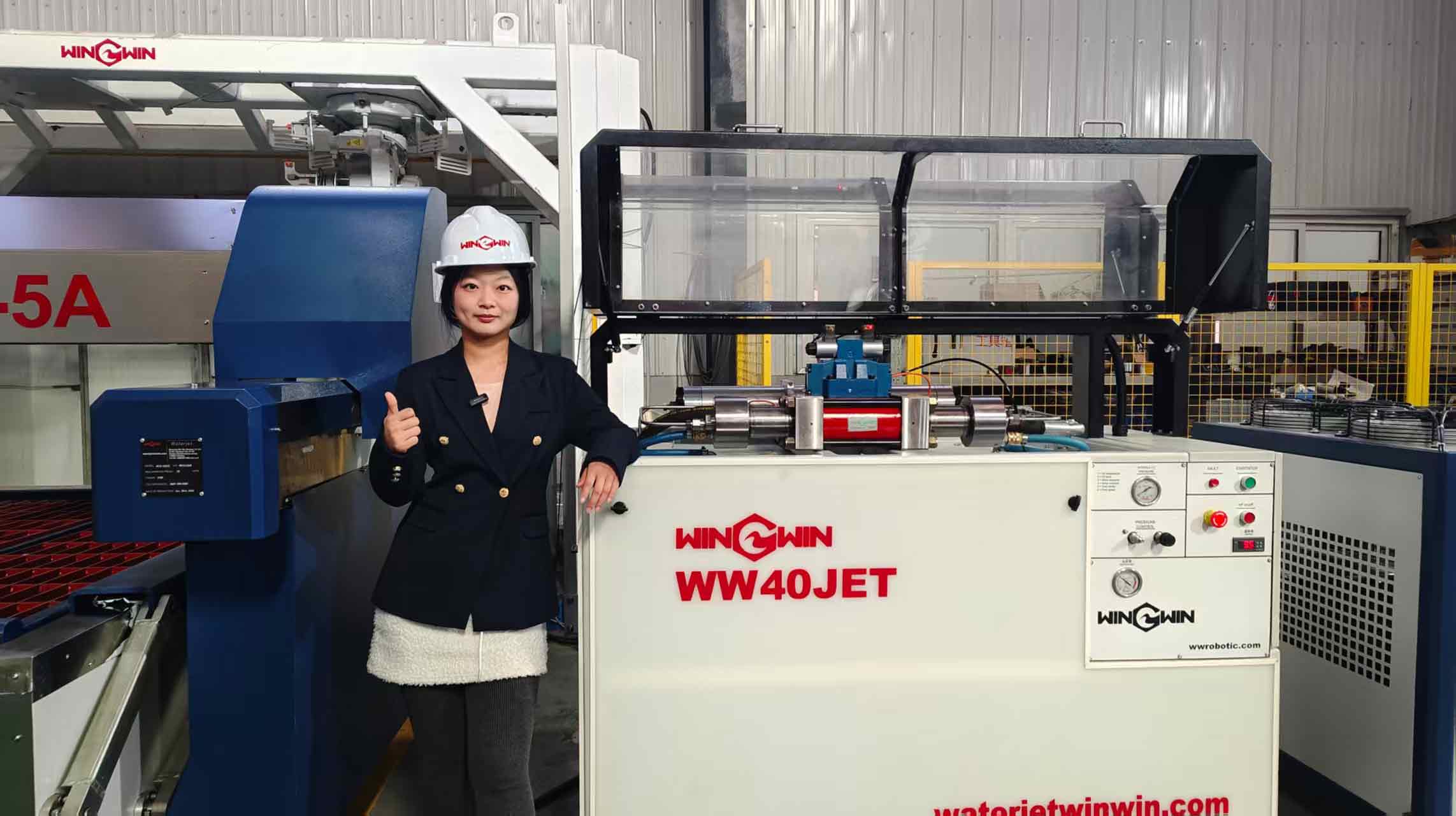

2. WW40JET Intensifier Pump: Stable High Pressure for Cutting Efficiency and Quality

The WW40JET high-pressure intensifier pump, the "power heart" of the waterjet cutting system, provides a continuous and stable high-pressure water source for marble processing:

With a maximum working pressure of up to 400MPa, it can easily penetrate thick marble slabs, delivering fast cutting speed, smooth cut surfaces, and zero chipping or cracking;

Features an optimized sealing structure to reduce wear on vulnerable parts, extend equipment service life, and lower maintenance costs;

Operates stably with low noise, suitable for long-term continuous operation to meet the mass production needs of stone processing factories.

3. Laser Height Measurement Function: Adaptive Slab Compensation to Eliminate Cutting Defects

Marble slabs are prone to surface unevenness, warping, and inconsistent thickness during transportation and storage, which often leads to incomplete cutting, over-cutting, chipping and other defects in traditional cutting. The laser height measurement system integrated in the machine automatically scans the slab surface before cutting, obtains real-time data on slab height and flatness, automatically adjusts the cutting head height, and compensates for slab errors throughout the process, ensuring consistent cutting depth, perfectly solving marble cutting defects, and improving the yield of finished products.

4. Automatic Loading/Unloading System: Labor Liberation and Efficiency Improvement

Addressing the pain points of heavy marble slabs, high manual handling difficulty, and low efficiency, the 4020-5A is equipped with a fully automatic loading/unloading system:

Automatically completes the entire process of slab loading, positioning, and unloading without manual intervention, greatly reducing labor costs and avoiding slab collision and damage caused by manual handling;

Enables 24-hour continuous operation, increasing single-shift production capacity by over 30%, perfectly adapting to the large-scale, high-load production needs of stone processing factories.

5. Weihong Multi-Language System: Easy Operation for Global Market Adaptation

The machine is equipped with the intelligent Weihong CNC system, supporting multi-language switching (Chinese, English, Spanish, etc.), with a simple and intuitive operation interface that allows even new operators to get started quickly:

Supports direct import of CAD drawings and automatic generation of cutting paths for high programming efficiency;

Equipped with functions such as breakpoint resume cutting, fault alarm, and real-time monitoring to ensure production safety;

Adapts to operating habits in different regions around the world, helping enterprises expand their overseas markets.

II. Core Parameter Table of 4020-5A 5-Axis Waterjet Cutter

III. Marble Processing Application Scenarios and Process Advantage Comparison

1. Core Application Scenarios

The 4020-5A 5-axis waterjet cutter covers all types of marble processing needs:

Architectural Decoration: Marble background walls, floor mosaics, door frames, window frames, special-shaped lines;

Craft Processing: Marble reliefs, ornaments, tombstones, artistic shapes;

Furniture Manufacturing: Marble table tops, countertops, kitchen and bathroom countertops, special-shaped furniture accessories;

Engineering Customization: Mass cutting and special-shaped processing for large-scale stone projects.
