Cut tiles with Double Z-Axis 4020 Waterjet, Improve Your Output, Reduce Downtime

Can I use a waterjet to cut tiles?

Yes, waterjet cuts tiles perfectly—and our 4020 dual‑head waterjet does it better, faster, and more reliably.

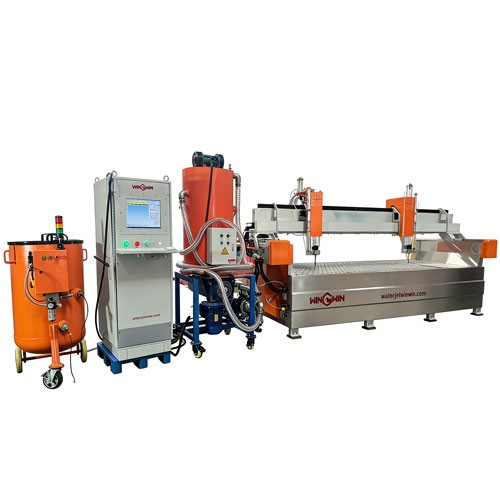

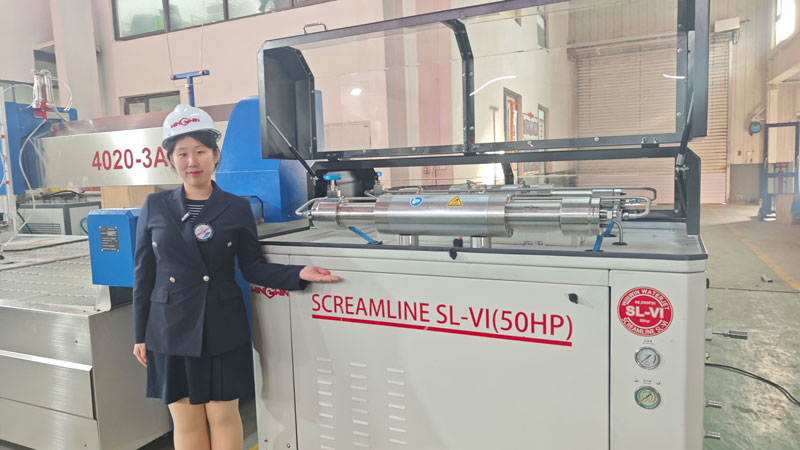

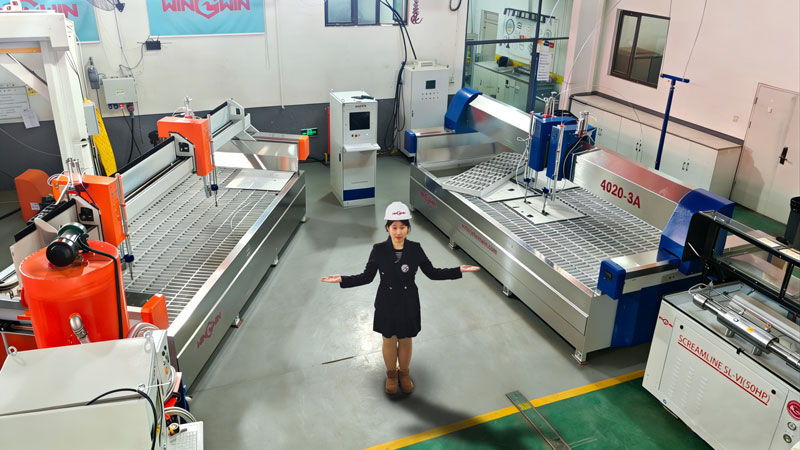

The two sets of 4020 waterjet are purpose‑built for high‑volume tile fabrication, featuring dual cutting heads driven by dual intensifier pumps. One powerful pump powers two independent cutting heads, enabling simultaneous high‑precision cutting to double your throughput without extra floor space or labor.

• Ceramic & porcelain tiles

• Marble, granite, and stone tiles

• Mosaic & decorative tiles

• Glass, quartz, and engineered tile materials

What sets Win-Win Waterjet apart:

·         Unibody Load-Bearing Tank Frame: The internal water tank is housed within this integrated frame, which increases weighing stability by 30%.

·         Oil-Immersed Structure: Screw and slide block are fully oil-immersed. This ensures them remain clean and lubricated at all times during operation, extending service life by 15 times.

·         WEIHONG Motor and CNC System: WEIHONG system has superior compatibility. Motor parameters can be configured directly within the system.

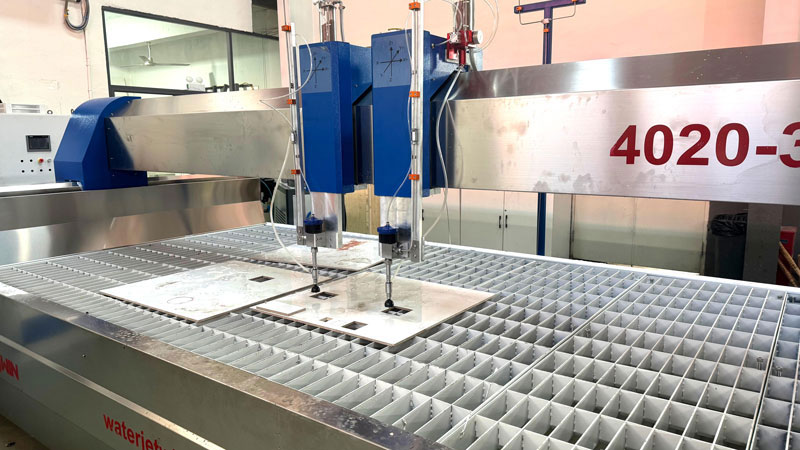

·         Dual Guide Rails and Ball Screw on Z-Axis: The Z-axis is also built with dual guide rails and a ball screw structure, ensuring the stability of the cutting head and long-term durability. Driven by a servo motor, it enables automatic height adjustment.

·         Lifelong free online guidance.

·         All steel parts are grit-blasted, primed with two coats of anti-rust paint, with a custom-colored paint.

Applications of 3-axis waterjet for cutting tiles:

• Floor Tiles: Delivers aesthetic, damage-free cuts with smooth edges—critical for high-quality flooring installations.

• Kitchen Tiles: Provides a clean, hygienic cutting process ideal for food-safe kitchen spaces, with the flexibility to create

• custom cuts and shapes.

• Commercial Area Tiles: Meets the demands of malls, office buildings and other commercial spaces with fast, high-precision

• cutting for both flooring and decorative tilework.

• Counter Tiles: Tackles thick slab counter tiles with robust abrasive cutting, handling all sizes and thicknesses with ease.

• Fireplace Tiles: Cuts hard stone, ceramic and porcelain fireplace tiles quickly and accurately— a task that laser cutting and

• other methods struggle with or complete at a glacial pace.

FAQ

Can I waterjet a porcelain tile?

• Absolutely. Waterjet cutting works flawlessly for porcelain tiles, as well as all other tile types and a wide range
• of additional industrial materials.

Will the tile crack when using a waterjet?

• Tiles will not crack with proper waterjet use. Simply follow the manufacturer’s recommended pressure settings,
• nozzle selection and cutting head configurations, and provide adequate material support during the cutting process.

Can you achieve a perfect edge cut with a water jet machine?

• Yes. With the correct nozzle selection, pressure settings and CNC calibration, a waterjet machine produces perfectly
• smooth, precise edge cuts on all tile materials—no secondary finishing required.
