4020 5-Axis Waterjet Cutting Machine - High Precision for Metal Cutting

Details

4020 5-Axis Waterjet Cutting Machine - High Precision for Metal Cutting

As a professional waterjet cutting machine factory, we provide a high-performance 4020 5-axis waterjet cutting machine, optimized specifically for metal cutting. This waterjet cutting machine combines a 4m×2m large work envelope with advanced 5-axis cutting head motion, offering precision and stability that makes it ideal for metal processing. Its matched SL-VI 50 intensifier pump, which can be equipped with two intensifiers for 24-hour non-stop operation, ensures stable long-term running—critical for metal cutting tasks requiring continuous production.

1.Basic Configuration

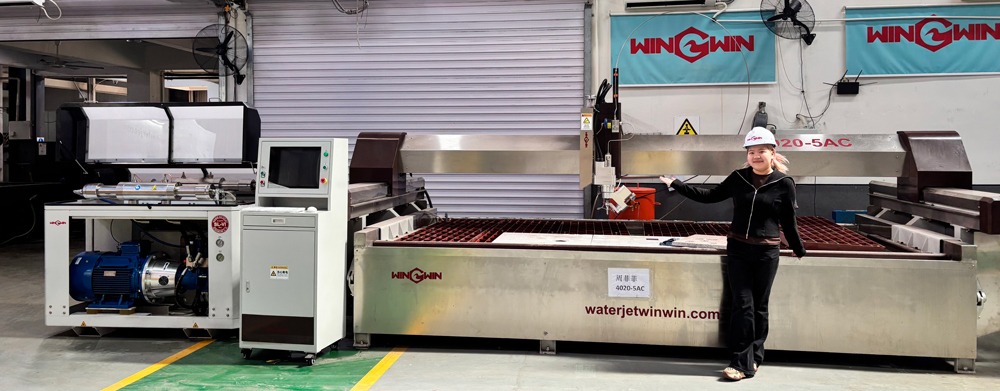

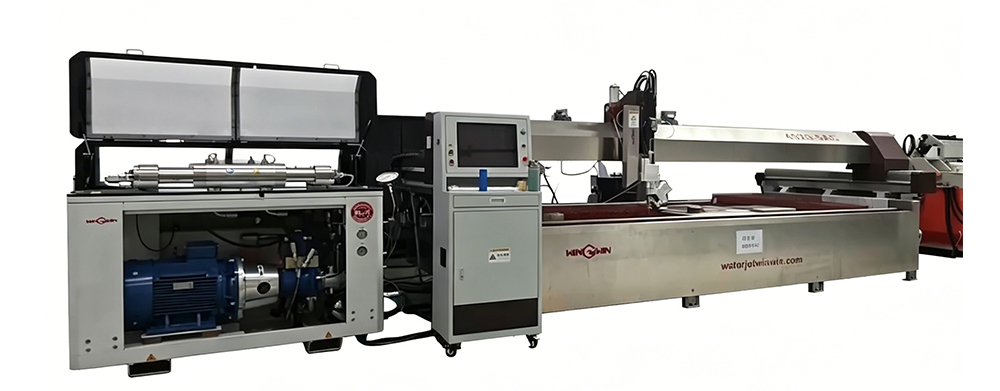

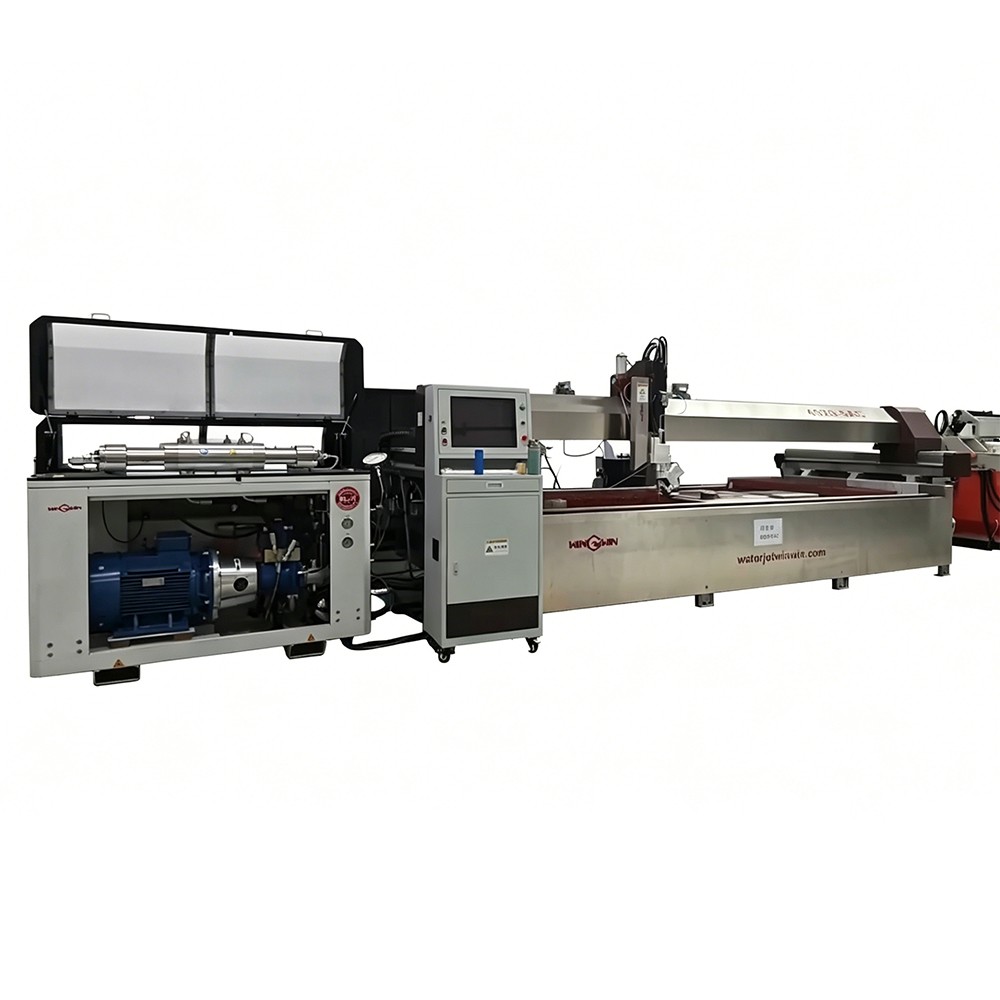

Cutting Table: 4020 5A waterjet machine, 4m×2m work envelope, stable for large metal plates.
CNC Controlling Software: WEIHONG CNC System, high precision and responsive operation.
Intensifier Pump: SL-VI 50, core component with dual intensifier support for 24-hour non-stop work.
Cooling System: Industrial Grand, dissipates heat to ensure stable operation.
Water Softener: Five-stage filtration, prevents nozzle blockage.
Abrasive Feeder: 200L, reduces manual refilling frequency.

2.Why 5-Axis for Metal Cutting?

Traditional 2-axis or 3-axis waterjet cutting machine only cut perpendicularly, while metal workpieces often need beveled edges or complex contours. The 4020 waterjet cutting machine’s 5-axis head tilts up to ±60°, cutting angled edges, tapered holes and 3D contours in one setup—no secondary processing, saving time and ensuring precision.

3.4020 Waterjet Cutting Machine Parameters

Parameter Name	Specification
Cutting Table Model	4020 5A waterjet machine
X-Axis Cutting Range	4000mm (4m)
Y-Axis Cutting Range	2000mm (2m)
Z-Axis Cutting Range	200mm
Control Accuracy	±0.01mm
Re-position Accuracy	0.025mm
Max Cutting Speed	10m/min
Max Pressure	60,000 psi (4137 bar)
Max Swing Angle	±0.68°

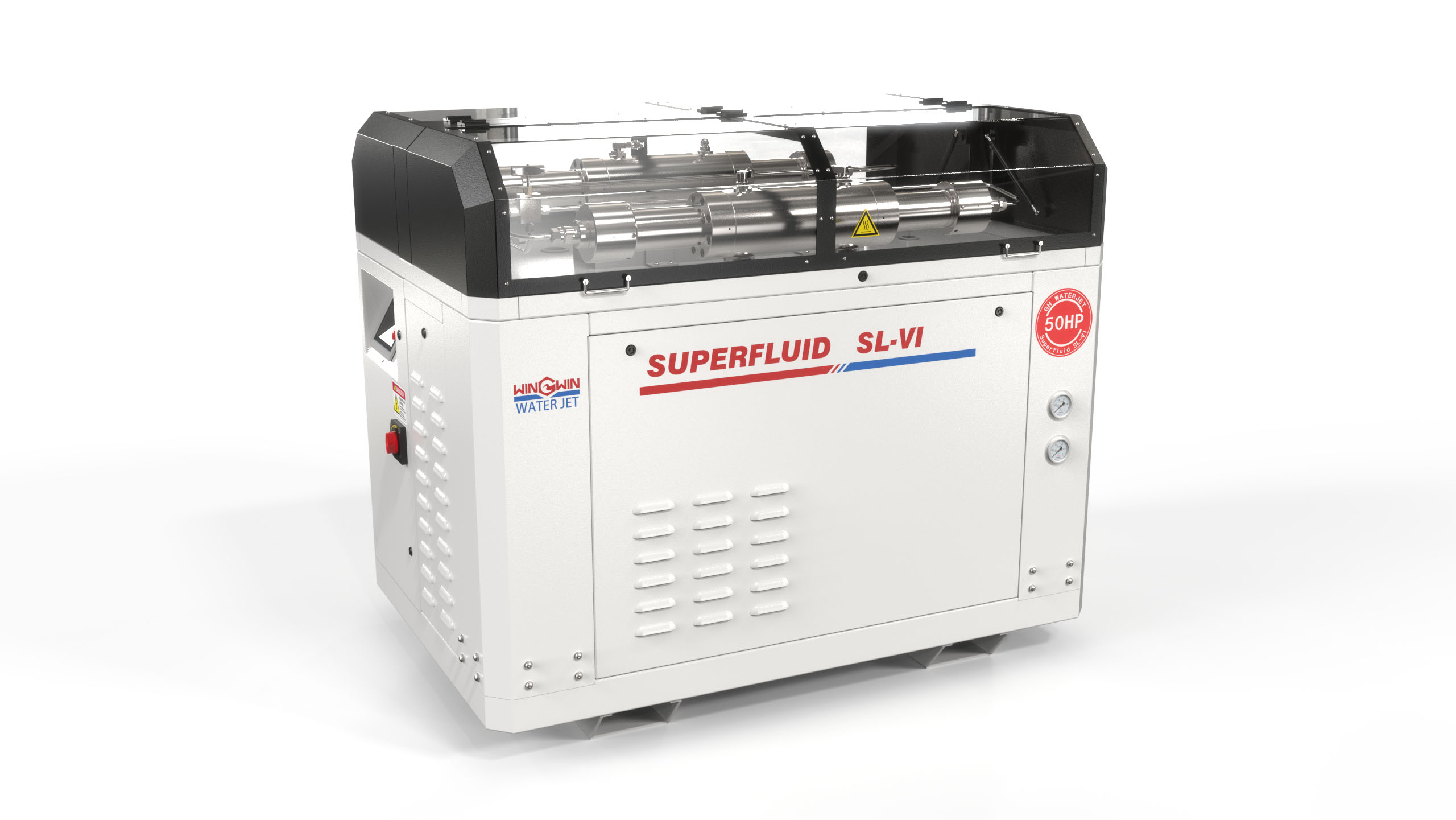

4.SL-VI 50 Intensifier Pump Features

Star-delta starting program, saves electricity and protects equipment.

Omron PLC with built-in booster pump starting program for stable operation.
Equipped with pressure gauges for real-time performance monitoring.
Four-layer steel-reinforced high-pressure hoses (38MPa resistance).

Dual intensifier design for 24-hour non-stop operation.

Rated pressure	420Mpa（60000psi）
Work Pressure	380Mpa（7200-55000psi）
Power	37KW（50HP）
Max Flow	3.8L/min
Intensifier Quantity	2 pcs
Pressure Ratio	0:01:20
Accumulator Capacity	2L
Max Oil Pressure	31Mpa
Fuel Tank Capacity	130L
Weight	1.5t
Dimensions	1700x1200x1500（mm）


5.Key Advantages for Metal Cutting

Zero heat-affected zone: No metal deformation or discoloration. • No tool wear: Uses water and garnet, no blade replacement. • Large workspace: 4m×2m for large metal plates. • High precision: Suitable for precision metal parts. • Stable operation: SL-VI 50 pump ensures 24-hour running.

6.Unattended Operation

This waterjet cutting machine can run 4-8 hours unattended for simple tasks (with full abrasive and water). Full autonomy is limited by abrasive refills, nozzle wear, and material loading. Semi-automated solutions (large hoppers, automatic abrasive delivery) extend runtime.

7.Safety Training & After-Sales

We provide full safety training (high-pressure system, PPE, emergency procedures) and 24-hour technical support. Training formats include on-site, factory sessions, and video manuals.

Our 4020 5-axis waterjet cutting machine is a reliable choice for metal cutting, with stable performance and large workspace. Contact us for more details on this waterjet cutting machine.
