Small Waterjet Cost for Glass Cutting in Brazil

In recent years, the demand for precision cutting solutions has been growing rapidly in Brazil, especially in industries such as construction, interior design, and glass processing. Among various technologies, small waterjet machines have become an increasingly popular choice for glass cutting due to their flexibility, precision, and cost efficiency.

Why Choose a Small Waterjet for Glass Cutting?

A small waterjet cutting machine uses high-pressure water mixed with abrasive materials to cut through glass without generating heat. This makes it ideal for delicate materials where traditional cutting methods may cause cracks or deformation.

Compared to traditional tools, small waterjets offer:

• High precision cutting for complex shapes

• No thermal damage to glass edges

• Smooth finishing with minimal post-processing

• Ability to cut laminated or thick glass

These advantages make waterjet technology especially valuable for Brazilian businesses involved in custom glass fabrication.

1. Oil-Immersed Structure

Screw and slide block are fully oil-immersed. This ensures them remain clean and lubricated at all times during operation,

extending service life by 15 times.

2. Reinforced Ball Screw and Large-sized Guide Rail

Eliminate operational vibration, ensuring precision and                transmission stability even during high-speed operation.

3. WEIHONG Motor and Waterjet CNC System

WEIHONG system has superior compatibility. Motor parameters can be configured directly within the system.

4. Stainless Steel Protective Covers

Resistant to breakage and rust, effectively safeguarding the ball screw and guide rails to prolong their service life.

5. Dual Guide Rails and Ball Screw on Z-Axis

The Z-axis is also built with dual guide rails and a ball screw

structure, ensuring the stability of the cutting head and long-term durability. Driven by a servo motor, it enables automatic   height adjustment.

6. High-Quality Cable Carrier

Be engineered to withstand extreme high/low temperature,     wear, and fire.

1. Unibody Load-Bearing Tank Frame: The internal water tank is

housed within this integrated frame, which increases weighing stability by 30%. Its stability is far superior to that of

a single-layer sheet metal structure.

2. The periphery of the tank and the outer edges of the table are

protected with stainless steel, safeguarding against abrasion damage during the loading and unloading of materials.

3. load-bearing frame with exceptional durability and stability. The dual Y-Axis are constructed from H-shaped steel,

which are welded and then annealed before final machining. The X-axis crossbeam is formed from bent and welded steel plates that also undergo annealing. The entire

structure is subjected to an aging treatment to relieve internal

stresses.This guarantees the machine's immense strength, preventing deformation and ensuring permanent cutting accuracy.

4. All steel parts are grit-blasted, primed with two coats of anti-rust paint, with a custom-colored paint.The protective cover is made

entirely of stainless steel, keep the machine as bright as new for 10+ years.

5. The Block structure for support, providing more connection points, ensuring a more stable structure and a longer service life.

Small Waterjet Cost in Brazil

When considering investment, one of the most common questions is: How much does a small waterjet cost?

In the Brazilian market, the price of a small waterjet machine typically ranges between:

• USD 15,000 – USD 30,000 for entry-level machines

• USD 30,000 – USD 60,000 for higher precision or CNC-controlled systems

Several factors influence the final cost:

1. Machine Size

Smaller cutting tables reduce overall cost, making them suitable for workshops or small factories.

2. Pump Pressure

Higher pressure systems (e.g., 60,000 psi and above) increase cutting speed and capability but also raise the price.

3. CNC System

Advanced CNC control improves accuracy and automation, which is important for mass production.

4. Import Costs in Brazil

Due to import taxes and logistics, machines shipped to Brazil may cost more than in other regions. Buyers should consider:

• Import duties

• Shipping fees

• Installation support

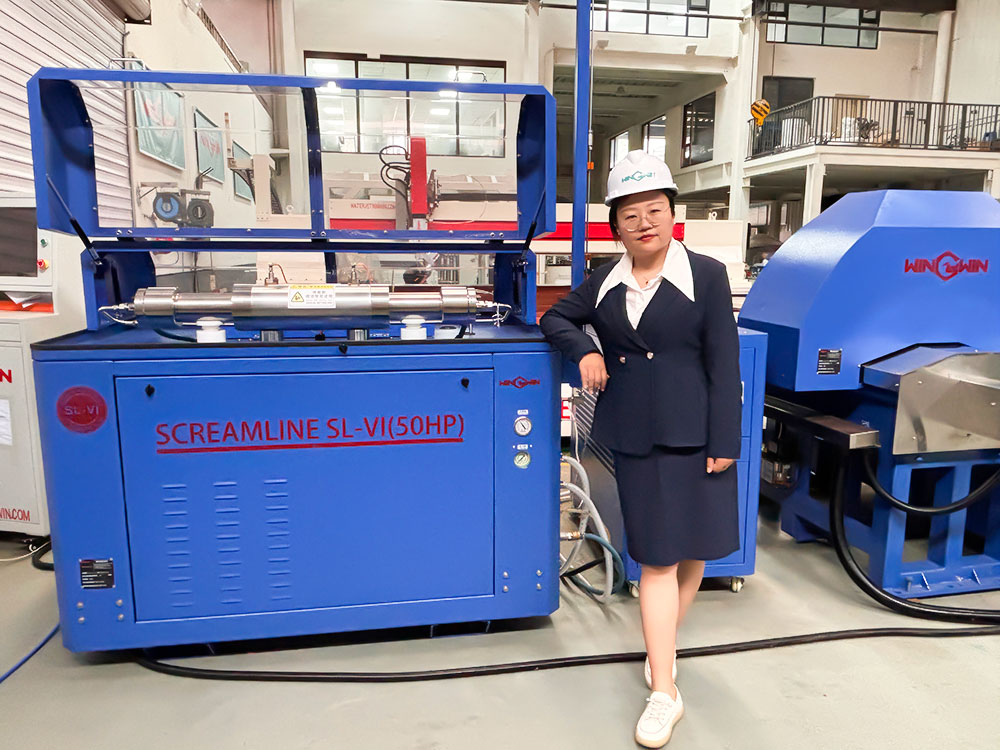

*The SL-VI series intensifier pumps boast millions of hours of operational experience and have been optimized for superior performance.

*The modular design allows for various matching options to suit the needs of manufacturers and customers.

*The innovative hard-seal head replaces four sets of high-pressure sealing rings, completely eliminating the possibility of leakage.

*The extended piston ceramic plunger results in slower reversing frequency, less wear, lower noise, and more stable operation at the same flow rate.

*The SL-VI intensifier pumps are easy to maintain and repair, fully meeting customer expectations for WINWIN Waterjet Systems. Internationally compatible pump are readily available and delivered promptly, enabling continuous operation at 51,000 psi (3500 bar), providing faster cutting speeds and lower cost per inch.

Applications of Waterjet Glass Cutting

Small waterjet machines are widely used across different sectors in Brazil:

• Architectural glass panels

• Shower doors and decorative glass

• Automotive glass components

• Artistic and custom glass designs

Their ability to cut intricate patterns makes them ideal for businesses aiming to offer high-value, customized products.

Is a Small Waterjet Worth the Investment?

For small to medium-sized businesses in Brazil, investing in a small waterjet can be a strategic decision. While the initial cost may

seem significant, the long-term benefits often outweigh the investment:

• Reduced material waste

• Increased production flexibility

• Higher product quality

• Expanded business opportunities

Additionally, companies can save outsourcing costs by handling glass cutting in-house.

Final Thoughts

As the Brazilian market continues to expand, the need for efficient and precise cutting solutions will only increase. A small waterjet machine offers a balance between affordability and performance, making it an excellent option for glass processing businesses.

Before purchasing, it is recommended to compare suppliers, evaluate after-sales service, and ensure the machine meets your production requirements.

Any inquiry about waterjet ,feel free contact waterjetspare.com
