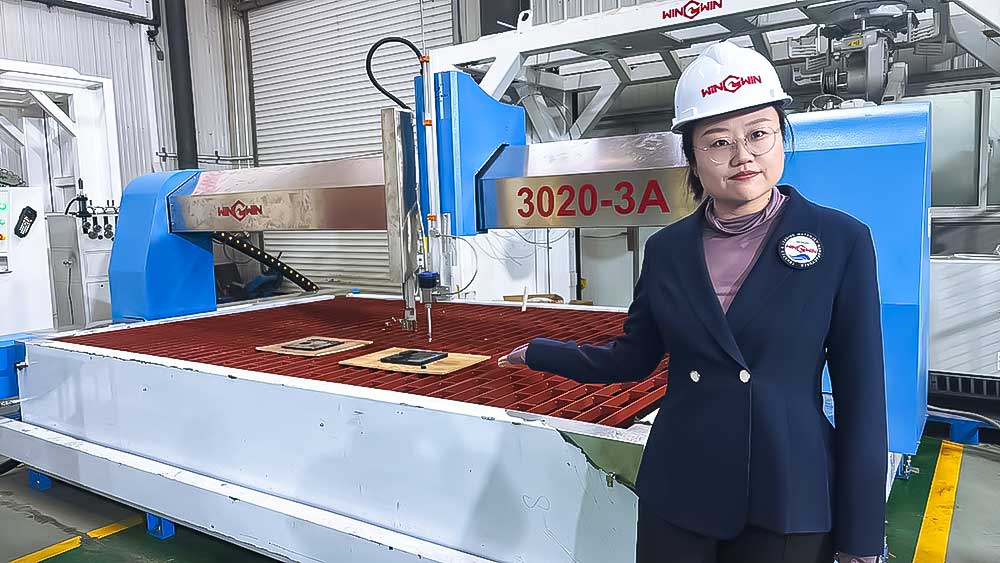

Water Jet Cutting Machine for Rubber & Tire Cutting (3000×2000mm)

1. Unibody Load-Bearing Tank Frame: The internal water tank is

housed within this integrated frame, which increases weighing stability by 30%. Its stability is far superior to that of

a single-layer sheet metal   structure.

2. The periphery of the tank and the outer edges of the table are

protected with stainless steel, safeguarding against abrasion damage during the loading and unloading of materials.

3. load-bearing frame with exceptional durability and stability. The dual Y-Axis are constructed from H-shaped steel,

which are welded and then annealed before final machining. The X-axis crossbeam is formed from bent and welded

steel plates that also undergo annealing. The entire

structure is subjected to an aging treatment to relieve internal

stresses.This guarantees the machine's immense strength, preventing deformation and ensuring permanent cutting accuracy.

4. All steel parts are grit-blasted, primed with two coats of anti-rust paint, with a custom-colored paint.The protective cover is made

entirely of stainless steel, keep the machine as bright as new for 10+ years.

5. The Block structure for support, providing more connection points,   ensuring a more stable structure and a longer service life.

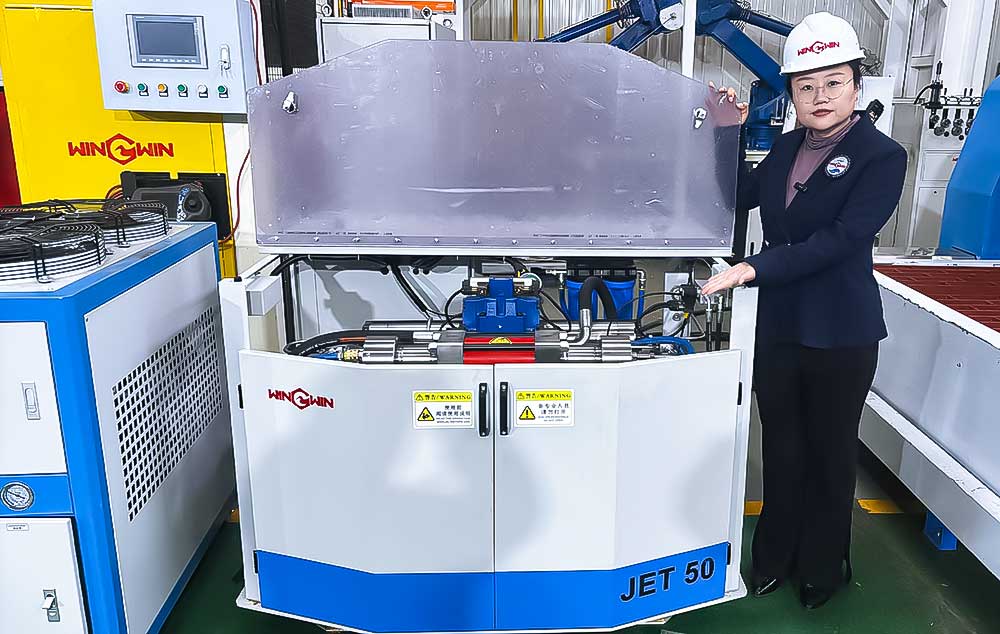

1. Standard WW50JET Intensifier Pump

Utilizes an internationally common core, with specifications and parts that are interchangeable with international

standards, ensuring broad compatibility of the equipment.

2. Independent Cooling Circulation System

Activates simultaneously with the motor to maintain oil temperature within the optimal operating range.

3. High-Performance Plate Cooler (Copper)

Maximize the contact area between coolant and hot oil,  effectively reducing oil temperature for stable equipment   operation.

4. Auto Constant Pressure Variable Pump

With a flow rate of 119 L/min, it ensures sufficient and stable pressure for fast cutting operations.

5.High/Low Pressure Regulating Valve

This mode eliminates pressure fluctuations and guarantees smooth pressure output.

6. 1.4L large-capacity accumulator

With one-piece forged construction and a maintenance- free design, making the pressure more stable.

7. High-Performance Hydraulic Directional Valve

Provides rapid response and low noise levels, making the equipment operation smoother.

Applications of Pure Water Jet Cutting for Rubber

Pure water jet cutting is widely used for processing rubber materials because it is a cold cutting method that does not generate heat. This makes it ideal for cutting soft and flexible materials such as natural rubber, synthetic rubber, foam, and sealing materials.

Typical industries that use pure water jet cutting for rubber include:

Automotive Industry
Waterjet cutting is commonly used to produce rubber components such as seals, gaskets, vibration pads, and insulation parts used in vehicles.

Tire Manufacturing and Recycling
Pure water jet cutting can be used to cut tire rubber layers, trim rubber sheets, and process recycled tire materials without burning or deformation.

Sealing and Gasket Manufacturing
Rubber gaskets and sealing components require high precision and clean edges. Waterjet cutting ensures accurate shapes and smooth edges without damaging the material.

Industrial Rubber Products
Many factories producing rubber sheets, conveyor belts, anti-vibration pads, and protective rubber parts use waterjet cutting for flexible and precise processing.

Foam and Soft Materials Processing
Pure water cutting is also widely used for foam, EVA, sponge, and other soft materials that require clean cutting without heat damage.

Because pure water jet cutting does not require abrasive materials and does not produce thermal distortion, it is an efficient and environmentally friendly solution for rubber and soft material cutting applications.

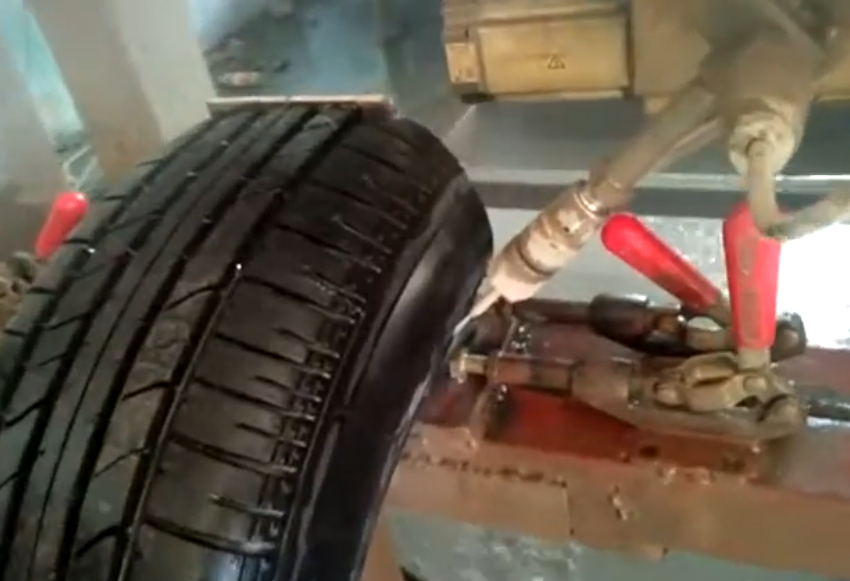

Can Water Jet Cutting Cut Waste Tires?

Yes, water jet cutting can effectively cut waste tires and recycled tire rubber. Because waterjet cutting is a cold cutting process, it does not generate heat, smoke, or burning during the cutting process. This makes it particularly suitable for cutting thick rubber materials and multi-layer tire structures.

In the tire recycling industry, water jet cutting is often used to cut scrap tires, tire sidewalls, and recycled rubber sheets into smaller pieces for further processing. Compared with traditional cutting methods such as blades or thermal cutting, waterjet cutting provides clean edges, high precision, and no material deformation.

Pure water jet systems are especially suitable for rubber and soft materials because they do not require abrasive sand and can reduce operating costs. As the demand for sustainable recycling and environmental protection continues to grow, water jet cutting is becoming an efficient solution for waste tire processing and rubber recycling applications.
