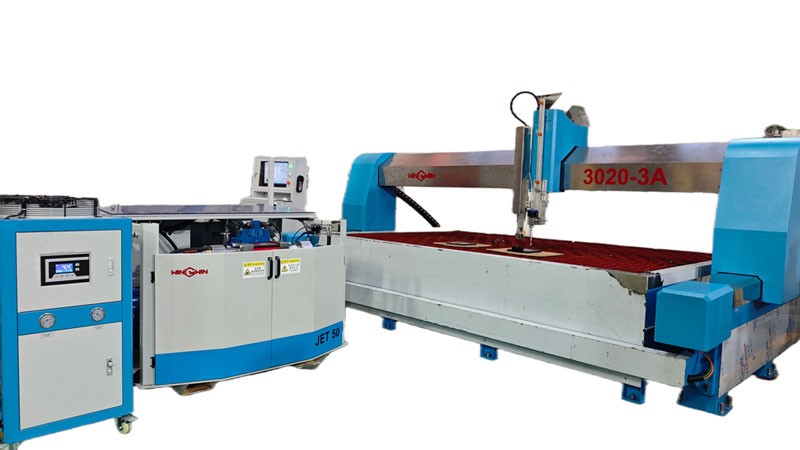

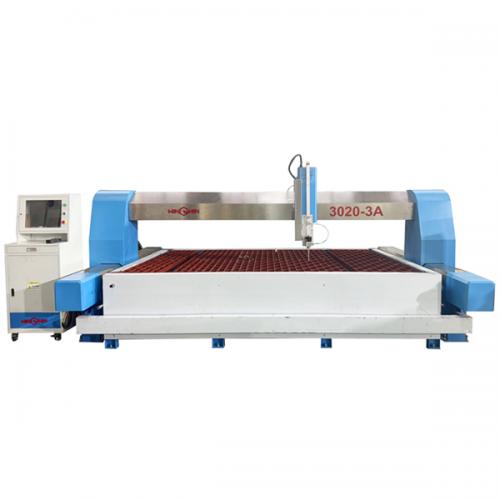

3020 3A Waterjet Cutting Machine for Rubber Cutting
3020 3A Waterjet Cutting Machine for Rubber Cutting
As a professional manufacturer with 25 years of experience in CNC waterjet cutting technology, Win-win is dedicated to providing high-precision, efficient and reliable cutting solutions for various industries. Our 3020 3A Waterjet Cutting Machine is specially optimized for rubber cutting, addressing the unique challenges of rubber materials such as elasticity, easy deformation and heat sensitivity, and becoming the preferred equipment for rubber processing enterprises worldwide.
| 1 | Cutting Table | 3020 |
| 2 | CNC Controlling Software | WEIHONG |
| 3 | Cutting Head | 3A Pure Water Cutting head |

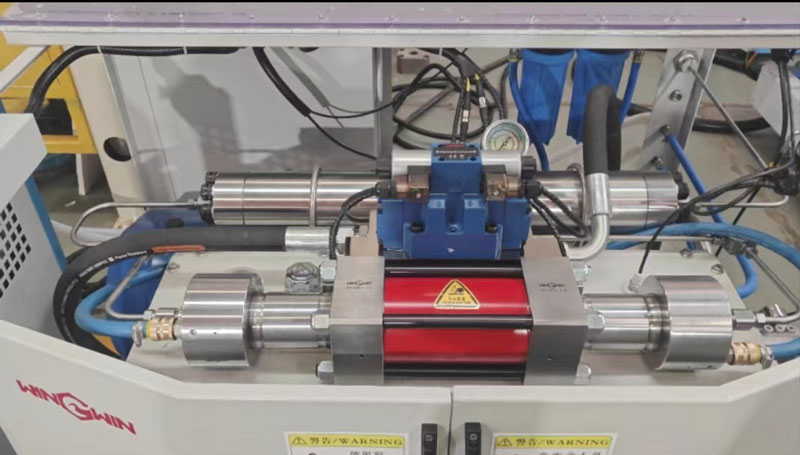

| 4 | Intensifier Pump | Jet 50- 60,000 psi |
| 5 | Cooling System | WW 5P |
| 6 | Water Softener | WW - 1T |
| 7 | Abrasive Feeder | WW - 200L |
Core Advantages for Rubber Cutting
Cold Cutting Technology, Protect Rubber Integrity: Different from traditional thermal cutting methods, the 3020 3A Waterjet Cutting Machine adopts high-pressure pure water jet (or mixed with appropriate abrasive as needed) for cold cutting, which does not generate any heat during the cutting process. This effectively avoids rubber melting, coking, hardening or harmful gas generation, perfectly preserving the original elasticity, durometer and sealing performance of rubber materials, and eliminating the need for secondary processing after cutting.
High Precision & Smooth Cutting Edge: Equipped with high-end servo motor, precision ball screw and linear guide rail, the machine achieves cutting accuracy of ±0.1mm and repeat positioning accuracy of ±0.05mm, which can accurately cut complex geometric shapes, sharp inner corners and intricate notches on rubber materials. The cutting kerf is as narrow as 0.5-1.0mm, which optimizes material utilization and reduces waste. At the same time, the non-contact cutting method ensures that the rubber is not stretched, torn or compressed, and the cutting edge is clean, smooth and burr-free.
Efficient Operation & Flexible Adaptability: The machine has a maximum running speed of 0-13000mm/min, which significantly improves cutting efficiency compared with traditional cutting methods. The 3000×2000mm effective cutting area can meet the cutting needs of large-size rubber sheets, while the programmable Z-axis height and cutting resumption function ensure continuous and stable production. It supports CNC programming and wireless operation, and can quickly switch between different cutting patterns, adapting to small-batch customization and large-scale mass production at the same time.
Durable Structure & Easy Maintenance: The whole machine adopts an integrated stainless steel protection structure, which has excellent dustproof and waterproof performance, and the workbench is made of all stainless steel, which is rust-proof and corrosion-resistant, ensuring long-term stable operation. The unique manual abrasive dosing controller has a simple structure, no wearing parts, and has anti-reflux function, which is maintenance-free. The built-in automatic lubrication system with microcomputer control can realize oil shortage alarm, effectively extending the service life of the machine.
| Cutting Range | X-Axis : 3000mm ，Y-Axis : 2000mm Z-Axis : 200mm |
| Control Accurcy | ±0.01mm |
| Re-position accuracy | 0.025 |
| Max cutting speed | 10m/min |
| Oprating software | WEIHONG CNC System |
| Max swing angle | ±68° |
| Swing angle accuracy | ±0.01° |
What sets Win-Win Waterjet apart:
· Unibody Load-Bearing Tank Frame: The internal water tank is housed within this integrated frame, which increases weighing stability by 30%.
· Oil-Immersed Structure: Screw and slide block are fully oil-immersed. This ensures them remain clean and lubricated at all times during operation, extending service life by 15 times.
· WEIHONG Motor and CNC System: WEIHONG system has superior compatibility. Motor parameters can be configured directly within the system.
· Dual Guide Rails and Ball Screw on Z-Axis: The Z-axis is also built with dual guide rails and a ball screw structure, ensuring the stability of the cutting head and long-term durability. Driven by a servo motor, it enables automatic height adjustment.
· Lifelong free online guidance.
· All steel parts are grit-blasted, primed with two coats of anti-rust paint, with a custom-colored paint.
Industries Applying Waterjet Rubber Cutting
The 3020 3A Waterjet Cutting Machine is widely used in various industries that require high-precision rubber cutting, perfectly matching the production needs of different fields with its excellent performance. Its specific applications in major industries are as follows:
Automotive Industry: It is mainly used to cut rubber seals, gaskets, shock-absorbing pads, and rubber hoses for engines, doors, and windows, which effectively ensures the sealing and shock-absorbing performance of auto parts and meets the strict quality standards of the automotive industry.
Construction Industry: It is applied to process rubber waterproof sheets, building sealing strips, and pipeline rubber gaskets. The machine’s stable performance enables it to adapt to the harsh working environment of construction sites and ensure the durability of rubber products.
Industrial Equipment Industry: It provides cutting services for rubber components such as wear-resistant linings, conveyor belt rubber sheets, and mechanical sealing rings, which helps improve the wear resistance and service life of industrial equipment.
Electronics Industry: It is used for precision cutting of soft rubber gaskets, insulation rubber sheets, and rubber sleeves for electronic components. The high-precision and burr-free cutting effect ensures the safety and stable operation of electronic products.
Other Industries: In addition, it is also widely used in the medical industry (cutting medical rubber accessories), aerospace industry (processing precision rubber parts for aircraft), and daily necessities industry (producing rubber mats and rubber gaskets for home appliances), providing reliable cutting support for various rubber processing scenarios.
Win-win's Commitment
Win-win has been focusing on the R&D and production of CNC waterjet cutting machines for over 20 years, with a complete technical team and a global after-sales service network. Each 3020 3A Waterjet Cutting Machine undergoes more than 130 quality inspections and 72 hours of durability testing before leaving the factory, ensuring stable and reliable performance. We provide 24/7 online technical support, 15-minute quick response and 24-hour on-site service (if needed), and offer customized cutting solutions according to the specific needs of customers, helping customers reduce costs and improve production efficiency.
Choosing Win-win's 3020 3A Waterjet Cutting Machine is choosing high efficiency, precision and peace of mind. We are committed to achieving win-win cooperation with every customer and creating greater value for your rubber processing business.
Contact Us
If you want to know more about the 3020 3A Waterjet Cutting Machine for Rubber Cutting, please contact us at any time. Our professional team will provide you with detailed product consultation and one-stop solution services.
