WATERJET SPARE shipped 05069703 Pneumatic Control Valve HP Normally Open Dump Valve to our customer.

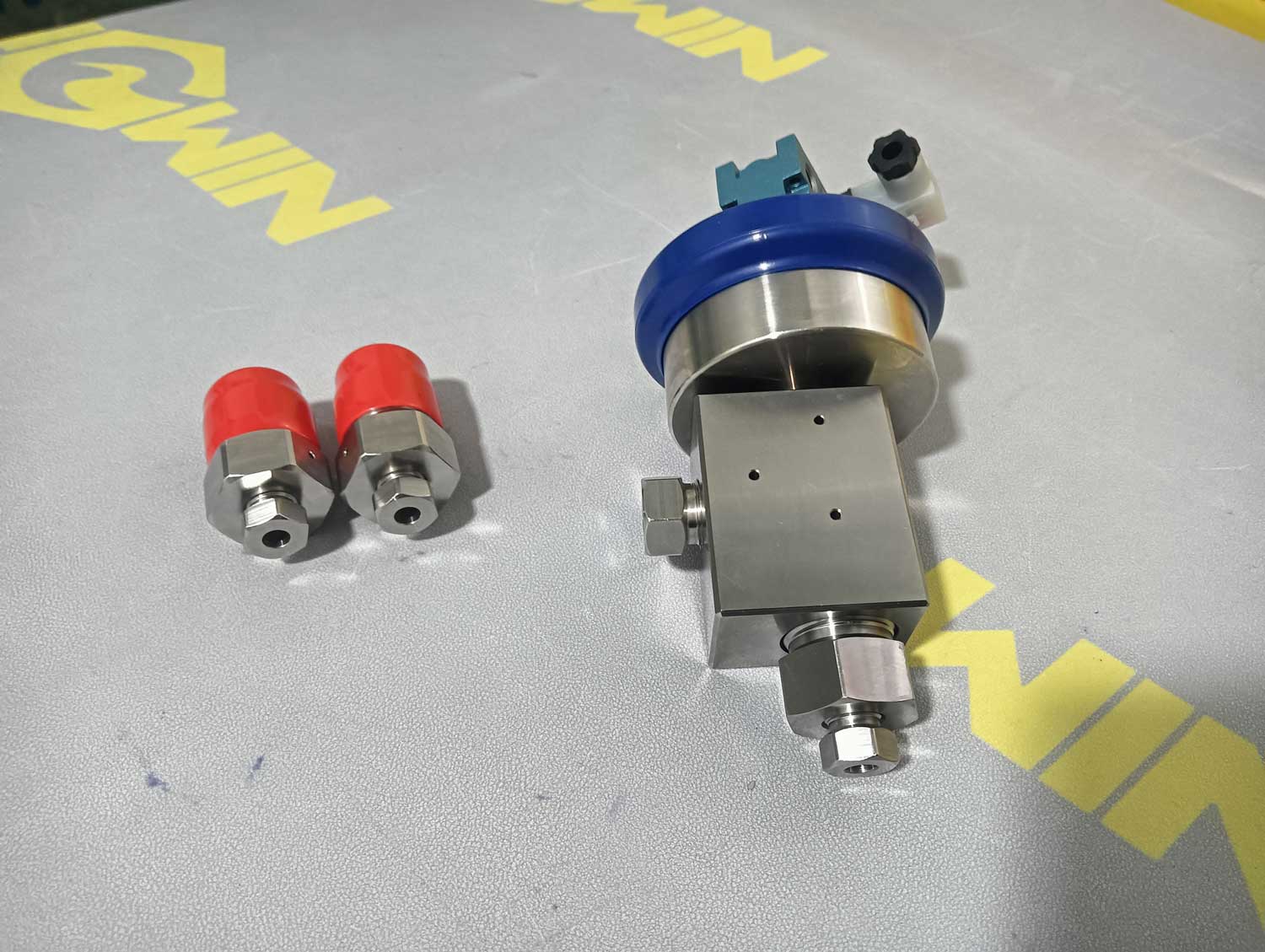

This is the shipping picture:

This Assembly Contains:

Solenoid Valve/110V or 24V

5450176 1/8" Hex Nipple

1601184 Top Closure NO Valve Actuator

10074714 O-Ring, 2-7/16" x 2-7/8"

501184 Piston, NO Valve Actuator

10074565 O-Ring, 2-1/4" x 2-3/8" x 1/16"

401184 Cylinder, NO Valve Actuator

901184 Valve Stem, NO/NC Valve

10187250 Bearing Disk, 1/4" Seal

10188233 Back Up Ring, 1/4" Seal

10178978 Seal Assembly, 1/4"

10189181 Valve Body, 1/4" Bore

Collar, 3/8"

Gland Nut, 3/8"

10178697 Valve Seat

10306097 Plug, 9/16" Bushing

10079580 9/16" Male x 1/4" Female Adapter

Collar, 1/4"

 Gland Nut, 1/4"

Normally open pneumatic dump valve assembly for 60 systems. Actuator has standard air intake with 1/8-27 NPT RH thread. HP water inlet is standard 3/8" HP connection. HP water out reduced down to standard 1/4" hp connection. Suggested air pressure for this actuator is 75-125 PSIG. Valve comes with your choice of 110v or 24v solenoid valve
