1

Elbow 90D 9 JICM – 1/8” BSPT

4-02-02-0001QP

4

2

Hose Assy ¼” – Red - 0.32m

SAPH-115QP

4

3

Tee 9 JICM

4-02-05-0002QP

2

4

Hose Assy ¼” – Red – 1.4m

SAPH-126QP

1

5

Hose Assy ¼” – Red – 1.1m

SAPH-127QP

1

6

Male Connector 21JIC – 3/4” BSPT ZP

4-04-01-0006QP

1

7

Ball Valve 3/4” M/F T-Handle Brass

203-18-0036QP

7

8

Bush Red 1-1/4” – 3/4” BSPT Brass

203-9-1210QP

4

NA

Quantum Owner’s Manual

129

9

1/8" Male - 4mm PI Connector Elbow

201-2-0418QP

3

10

Elbow 90D 1-1/4” BSPT M/F ZP

208-2-0057QP

5

11

Head Oil Filter 1-1/4” BSP

500-19-0055QP

2

12

1/8” Temp Sensor

700-1-0095QP

1

13

Nipple 1-1/4” BSP Brass

203-4-1250QP

6

14

Oil Filter 5.1” Moisture Absorption W/Sticker

500-19-0057SQP

1

15

Oil Filter 5.1” Glass Media W/Sticker

500-19-0056SQP

1

16

Ball Valve 1-1/4” BSPP 2Way Brass

4-03-13-0001QP

3

17

1/8” Temp Sensor

700-1-0088QP

1

18

Tee 1-1/4” BSP Parallel Female - Modified

208-5-0001-1QP

1

19

Male Connector 21JIC – 1-1/4” BSPT ZP

4-04-01-0002QP

2

20

Hose Assy 1” – Black – 1.2m

SAPH-113QP

2

21

Hose Assy ¾” – Black – 0.32m

SAPH-125QP

1

22

Hose Assy ¾” – Black – 1.1m

SAPH-136QP

2

23

Hose Assy 1” – Black – 1.0m

SAPH-114QP

1

24

Hose Assy ¾” – Black – 0.85m

SAPH-135QP

2

25

Male Connector 21JIC – 1” BSPT ZP

4-04-01-0001QP

2

26

Elbow 90D 17JICM – 1” BSPT ZP

208-2-0059QP

4

27

Oil Pump Assy 1” NPT E41JAB – 3/4HP

500-7-0108QP

1

28

Plug 3/4” BSP Brass

203-6-0750QP

2

29

Tee 1-1/4” BSP Parallel Female

208-5-0001QP

1

30

Elbow 45D 21JICM – 3/4” BSPT ZP

4-04-02-0005QP

1

31

Male Connector 17JIC – 3/4” BSPT ZP

208-4-0073QP

4

32

Oil Strainer 3/4”

203-11-0750QP

4

33

Elbow 90D 3/4” BSP M/F Brass

203-2-0030QP

2

34

Nipple 3/4” BSP Brass

202-4-0750QP

4

35

Elbow 90D 17JICM – 3/4” BSPT ZP

208-2-0043QP

1

36

Oil Manifold

SAP-G4-438-1QP

1

37

Nipple 1” NPT – 1-1/4” BSP

208-4-0087QP

2

38

Plug 1/2” BSP Brass

203-6-0500QP

1

39

Bulkhead M28 X 1/2” BSP Female

209-29-0010QP

1

40

Ball Valve 1/2”

203-18-0030QP

2

41

Male Connector 9JIC – 1/2” BSPT SS

208-4-0086QP

2

42

Tee 1/2” BSP FM-FM-M Nickel Plate

203-5-0010QP

1

43

Elbow 45D 17JICM – 3/4” BSPT ZP

208-4-0080QP

1

44

Bulkhead 3/4” BSP

4-09-29-0001QP

1

NA

Oil pump seal kit (1”)

500-7-0093QP

1

NA

Oil pump repair kit dual

500-7-0094QP

1

NA

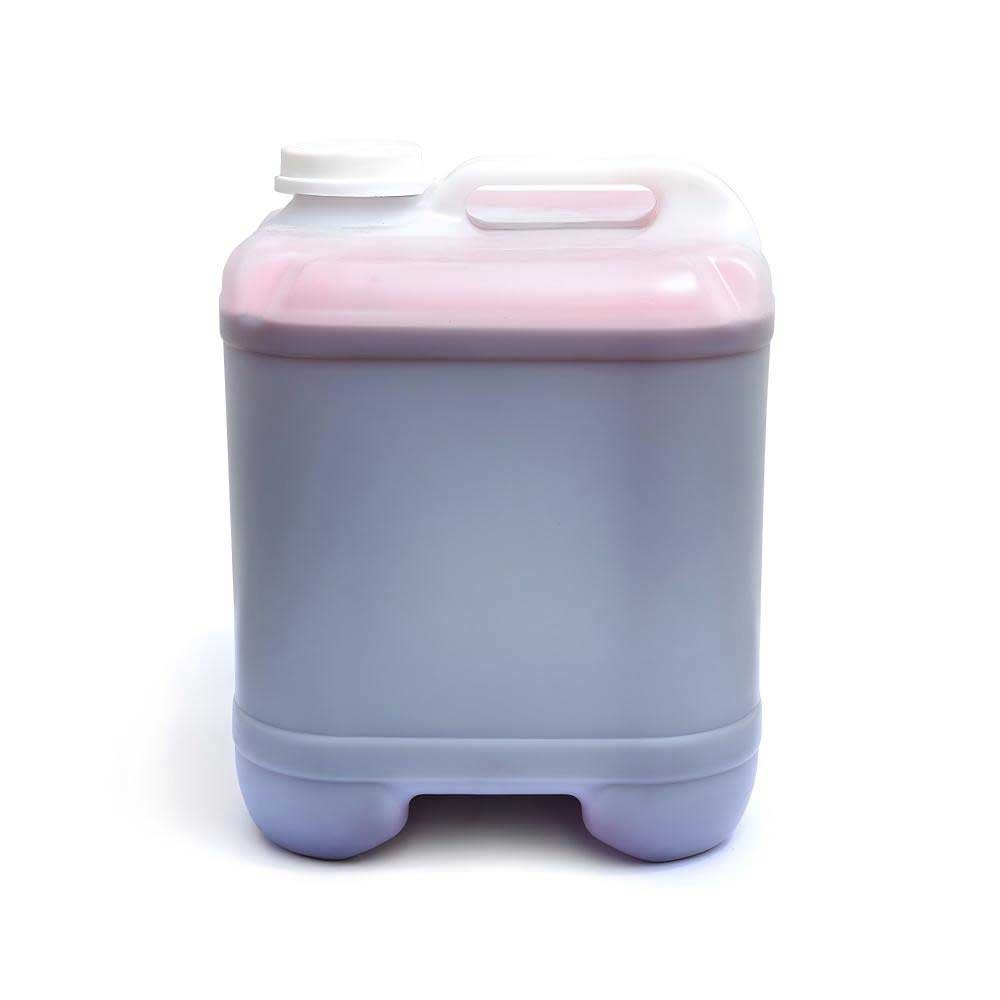

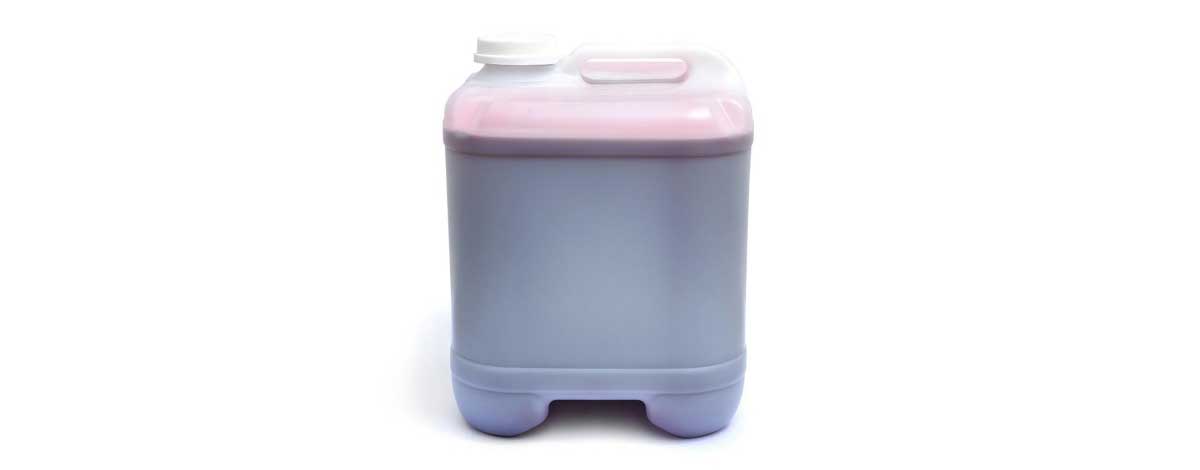

Syn-Gear EP150 20L Drum

500-3-0017QP

2
